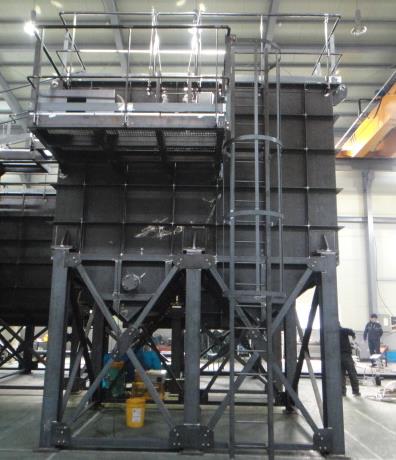

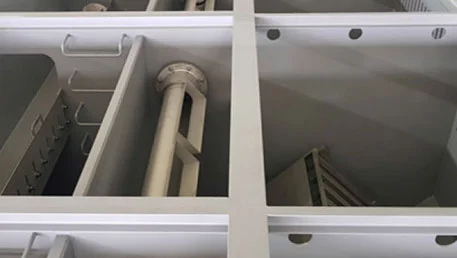

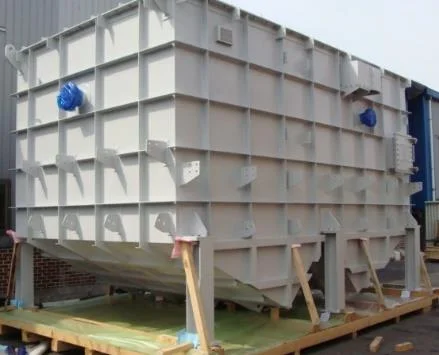

Corrugated Plate Interceptor Oil-Water Separator

Corrugated Plate Interceptor (CPI) is the most utilized oil-water separator, leveraging the specific gravity difference method to separate oil and sludge from oily wastewater.

It employs multiple slate or corrugated plates, or enhanced oil separation plates, arranged either slanted at a 45° angle or horizontally. This configuration directs the flow from the top to the bottom, effectively increasing the separator’s horizontal surface area without necessitating a larger basin.

Features

Features


Treatment Method

By slanting the corrugated plates at a 45-degree angle, oily water is separated due to the difference in buoyancy between oil and water

Principle of Separation

Buoyancy application

Installation Type

concrete basin

Separating Device

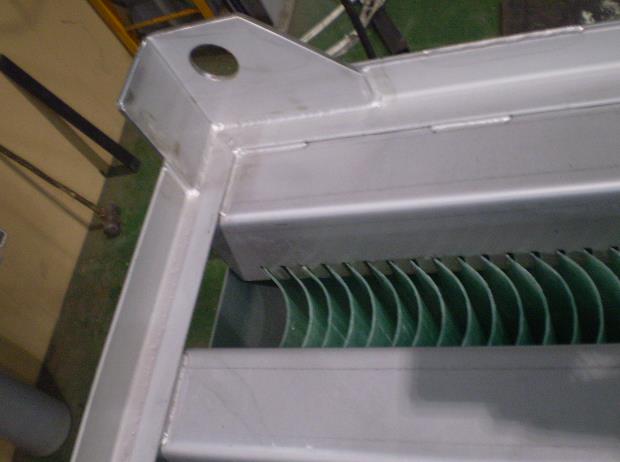

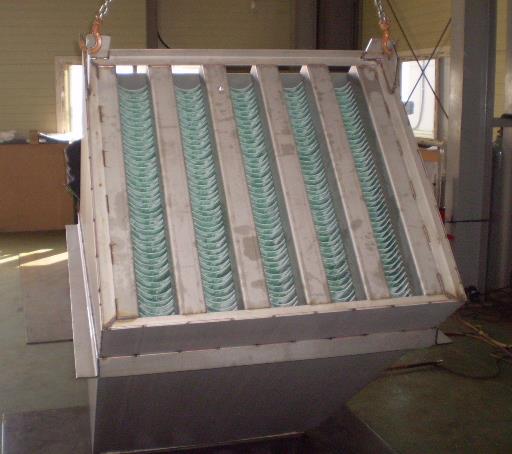

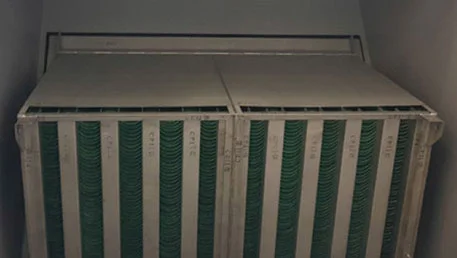

Corrugated plate pack

Separable Oil Size

60㎛

Separable Oil Content

99%

Oil Content In Treated Water

10ppm

Sludge Settling

settles smoothly without clogging the plate pack, as the flow direction of the oily water aligns with the direction of sludge sedimentation

separate oil and sludge from oily wastewater with the CPI Oil-Water Separator

Process

  • Oil contaminated wastewater passes through inlet section
  • Oil is separated by buoyancy
  • Sludge moves to bottom of the separator
  • Mixture results in clean water separation


Applications

First and Second Stage Separators for Extraction Sites

Ballast Water and Slop Oil Treatment Facilities

Oil Refineries

LNG Plants

Down Stream Plants

Off Shore Oil Rigs
